Mercedes G-Class W460 trailer plug

7 pin Euro Plug Pinout diagram

1 Left Turn

2 Rear Fog Light

3 Ground

4 Right Turn

5 Parking Right

6 Brakes

7 Parking Left

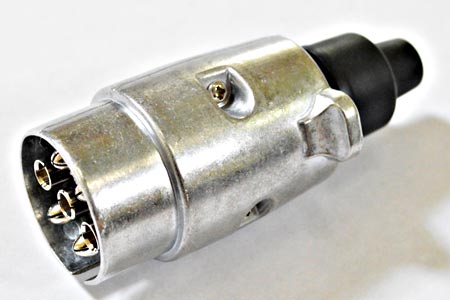

Heavy duty aluminum 7-pin trailer plug suitable for all G-Class cars from 1979 to 1989 with European trailer hitch 7-pin socket.

Will fit all G-Class W460 from 1979 to 1989 (230GE, 240GD, 280GE, 300GD)

13 pin Euro Plug Pinout diagram

1 Left Turn

2 Rear Fog Light

3 Ground

4 Right Turn

5 Parking Right

6 Brakes

7 Parking Left

8 Backup Light

9 12 volts +30

10 Not used

11 Not Used

12 Not Used

13 Ground for pin 9
